Security device that prevents overturning
Security device that prevents overturning
WARNING SYSTEM FOR RAISED DUMPER.
The system is designed to help
the driver be more vigilant.
It sends a visual signal (flashing light) and an alarm when
the truck is functioning and the dump is raised. It prevents
costly and embarrassing situations.
Best system on the market:
Sentinel 2.0 enable to inform the operator in real time the
degree and height of the dump truck, as well as the degree
of the dumping. * Informs the driver of potential dangers of
height and tipping. * Indicates the degree differences
between the dumper and the frame to avoid major torsion. *
Easily installed, adjusted and calibrated with top quality
components. * Auxiliary output available for lowering the
dumper when an alarm occurs (option).

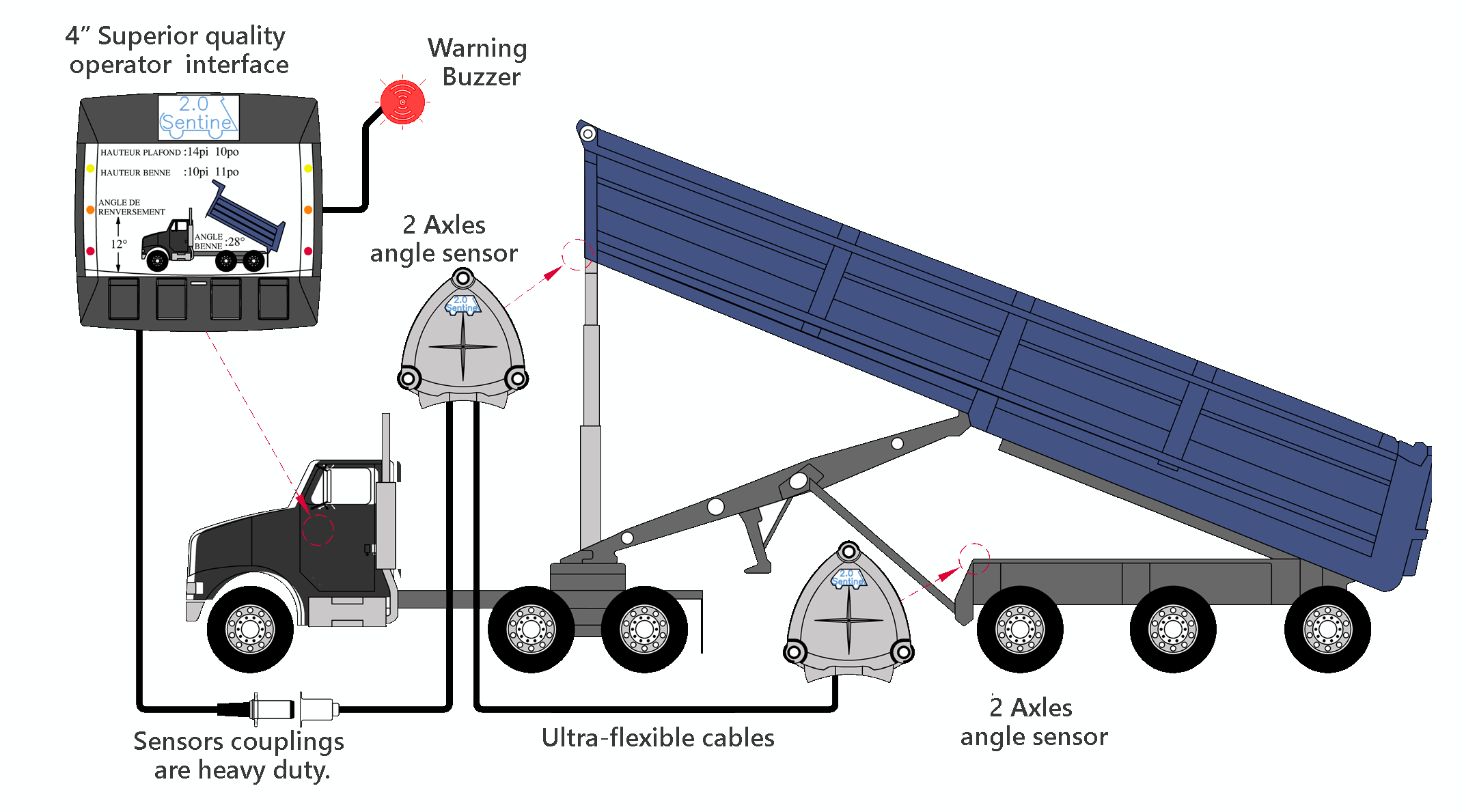

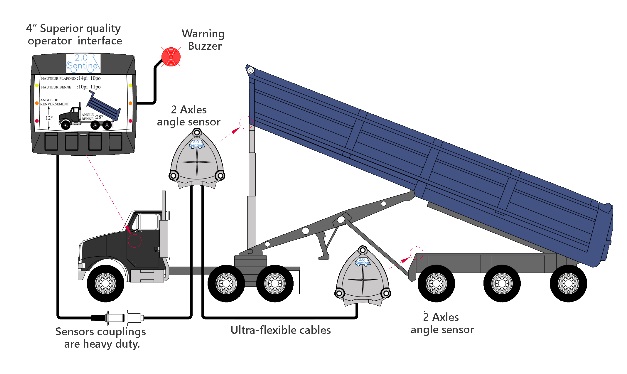

TECHNICAL INFO ON THE SENTINEL 2.0
Ensemble interface opérateur
intérieur cabine:
Écran de 4 pouces noir et blanc haute
résolution /
Module principal sans fil IP67, -40°C à
+85°C /
Avertisseur sonore et visuel de 90 dB avec
Del clignotant et lentille rouge /
Montage dans un boitier d’aluminium de
finition noir.
Trailer Tipper Kit: 2 Angle sensor, inclinometer-type IP67 Wireless main module -40°C to +85°C Set of 2 communication cables.
Do not wait for problems
to happen!
Contact your representative to
find out which products apply to your industry.
